Set Up the IMU

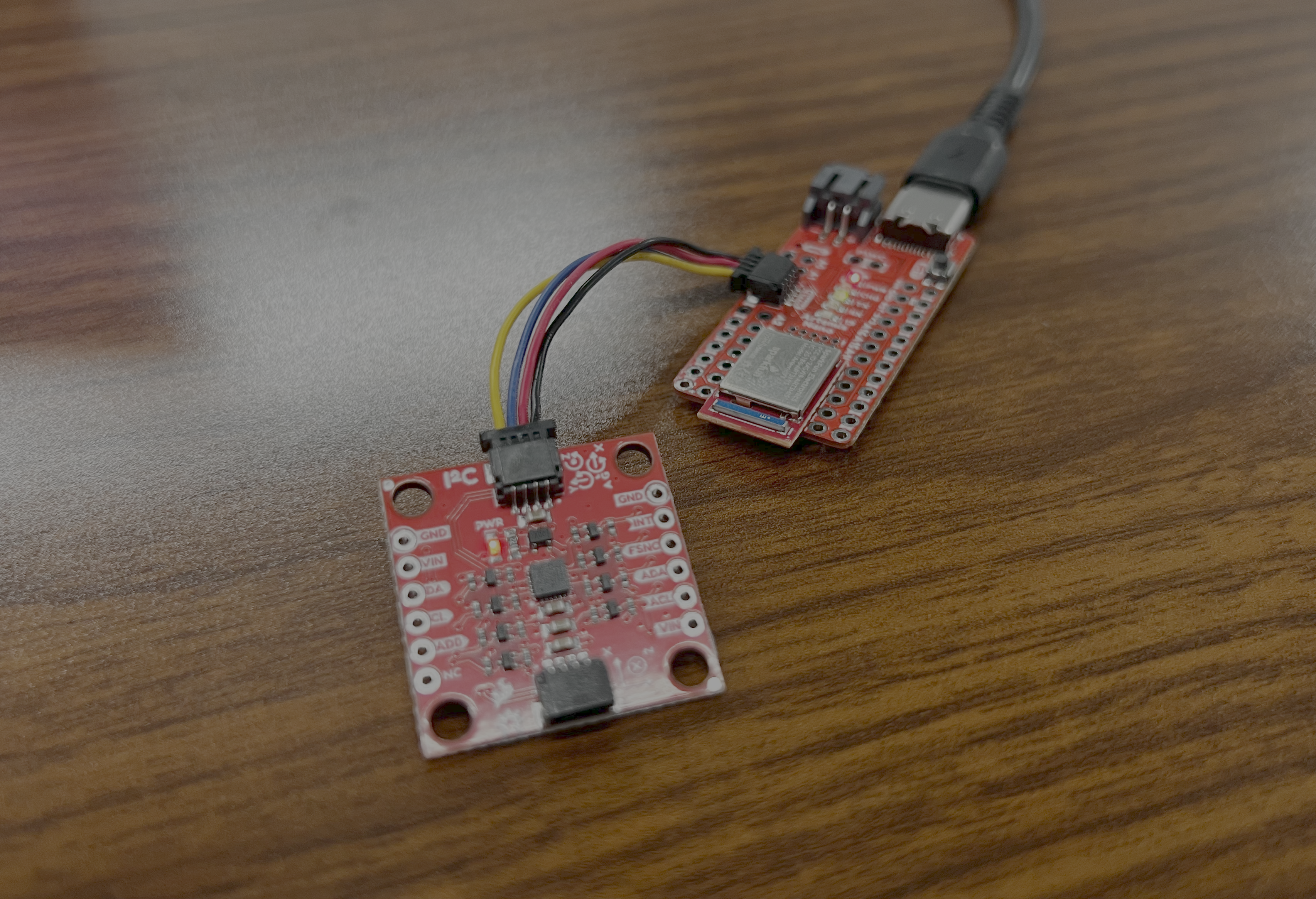

Artemis IMU Connections

The ICM-20948 IMU was connected to the Artemis board via QWIIC connector (I2C). The SparkFun 9DOF IMU Breakout – ICM 20948 Arduino library was installed through the Arduino Library Manager.

Example Code Verification

Example1_Basics was uploaded to verify IMU initialization and AGMT data streaming over I2C.

Result: IMU successfully detected and streaming scaled AGMT data.

A 3-blink LED startup indicator was added — useful when running on battery without serial access.

for (int i = 0; i < 3; i++) {
    digitalWrite(LED_BUILTIN, HIGH); delay(500);
    digitalWrite(LED_BUILTIN, LOW);  delay(500);
}

AD0_VAL

AD0_VAL sets the LSB of the IMU's I2C address:

AD0_VAL	I2C Address	Condition
`1`	`0x69`	ADR jumper not bridged — SparkFun default ✓
`0`	`0x68`	ADR jumper bridged (also disables SPI on SparkFun breakout)

The SparkFun breakout leaves the ADR jumper open by default, so AD0_VAL = 1 is correct. Setting it to 0 caused a Data Underflow error on initialization — confirmed via Serial Monitor.

myICM.begin(Wire, 1); // AD0_VAL = 1 → address 0x69

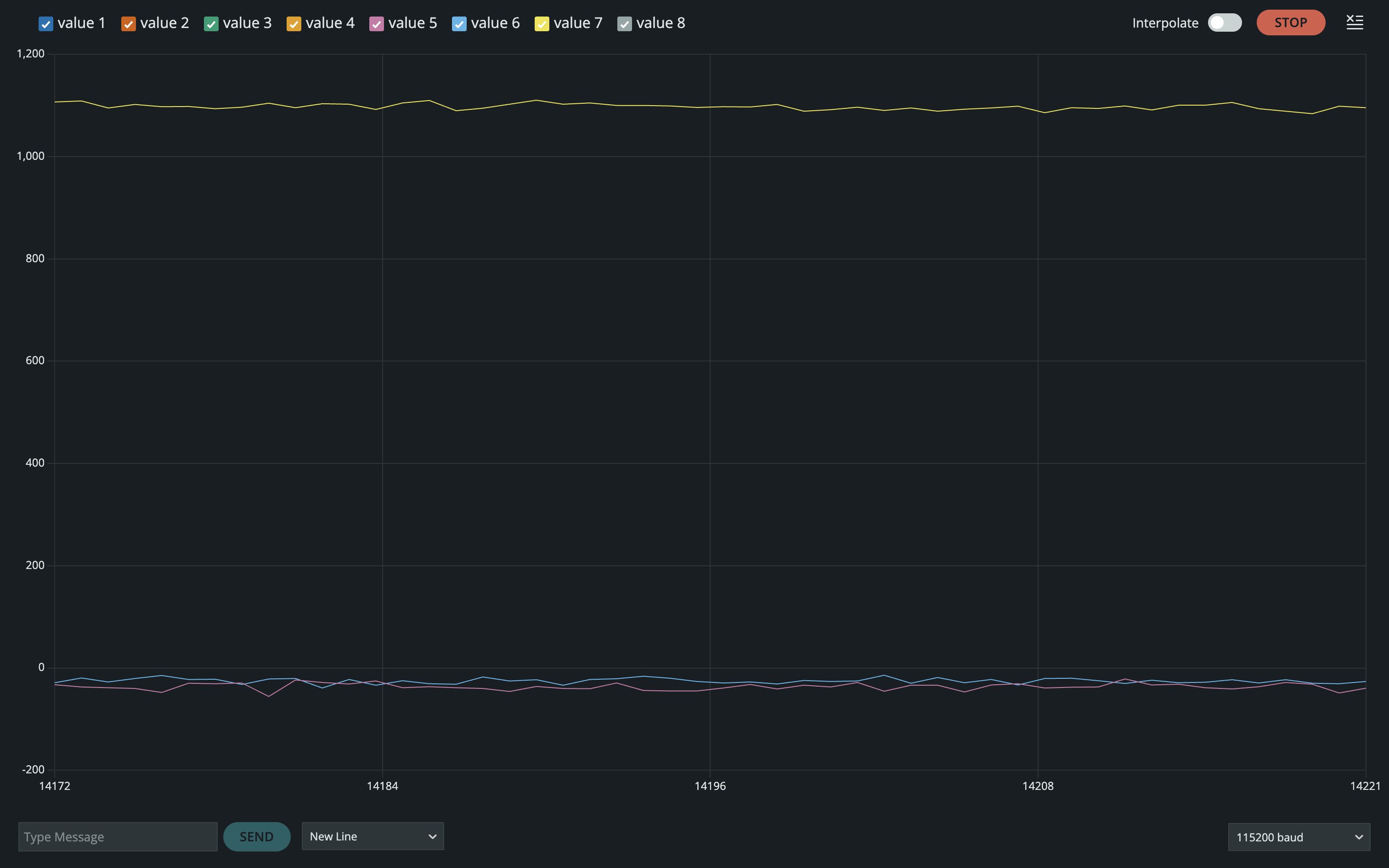

Acceleration & Gyroscope Data

Motion	Accelerometer	Gyroscope
Flat on table	az ≈ +1000 mg, ax/ay ≈ 0	All axes ≈ 0 dps
Rotated 90° onto side	Gravity shifts to now-downward axis	Spike on rotation axis during motion, returns to 0
Flipped upside down	az ≈ −1000 mg	Spike during flip, 0 when stationary
Shaken/accelerated	Dynamic changes + noise on all axes	Angular velocity spikes on all axes

The accelerometer measures the projection of the gravity vector onto each axis — giving absolute orientation but with noise. The gyroscope gives smooth angular velocity but integrating it introduces drift. This motivates the complementary filter.

IMU rotated 90° — Rotated 90°: gravity shifts to side axis

Accelerometer

Pitch & Roll from Accelerometer

When the IMU is tilted, gravity projects onto the X, Y, Z axes. Using trigonometry:

pitch = atan2(a_x, a_z) × (180 / π)
roll = atan2(a_y, a_z) × (180 / π)
// ax, ay, az in g's — divide raw mg output by 1000

Signs are negated to match the physical orientation of the SparkFun breakout:

#include <math.h>

float pitch_lpf = 0.0, roll_lpf = 0.0;

bool getAngles(float &pitch, float &roll, float &pitch_f, float &roll_f) {
    if (myICM.dataReady()) {
        myICM.getAGMT();
        float ax = myICM.accX() / 1000.0;
        float ay = myICM.accY() / 1000.0;
        float az = myICM.accZ() / 1000.0;

        pitch = -atan2(ax, az) * 180.0 / M_PI;
        roll  = -atan2(ay, az) * 180.0 / M_PI;

        pitch_lpf = 0.2 * pitch + 0.8 * pitch_lpf;
        roll_lpf  = 0.2 * roll  + 0.8 * roll_lpf;
        pitch_f = pitch_lpf;
        roll_f  = roll_lpf;
        return true;
    }
    return false;
}

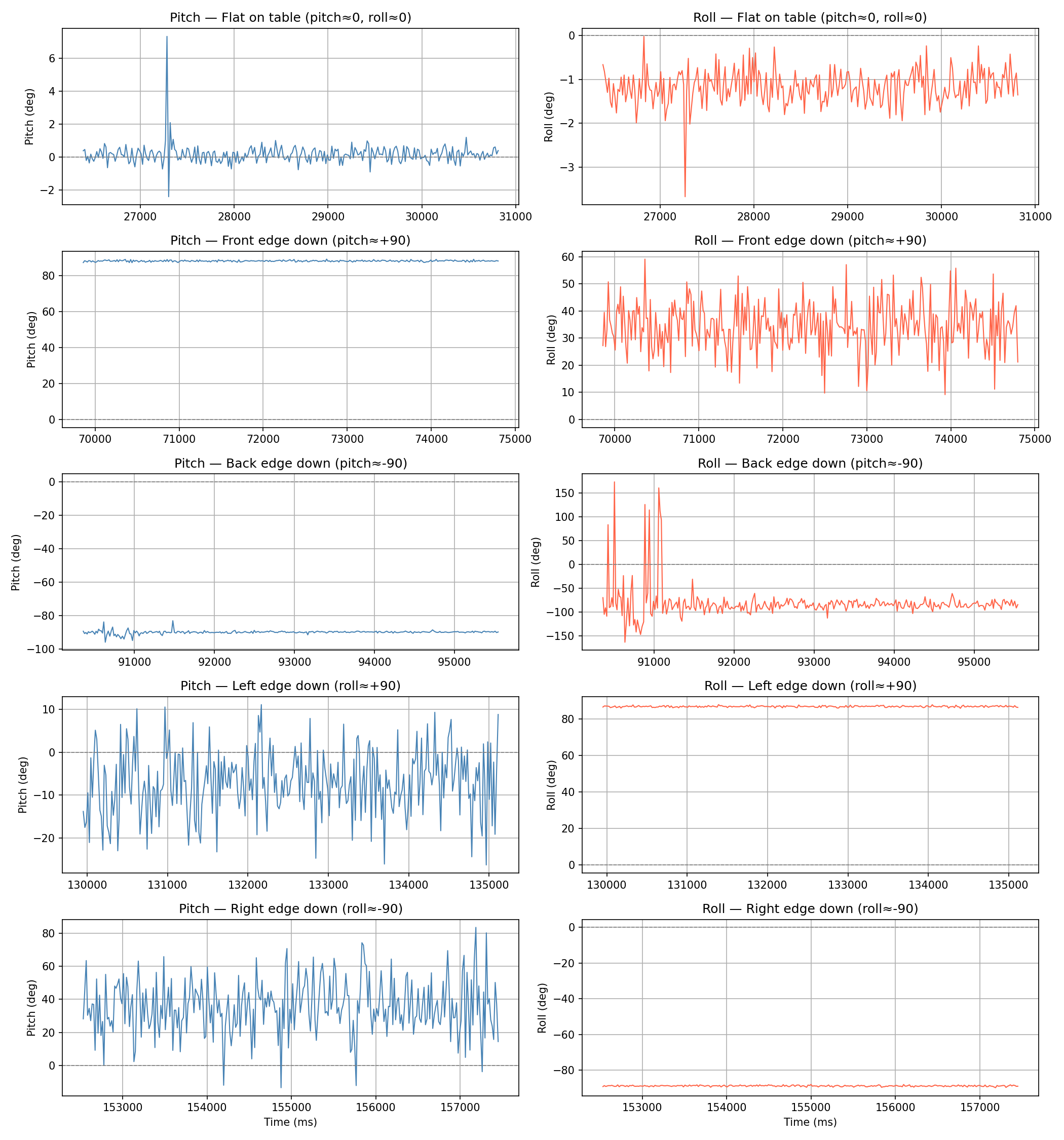

Data was streamed over BLE and plotted across 5 orientations using the table surface and edges as 90° guides:

Accuracy

Mean pitch/roll computed over each capture window. Only the relevant axis is reported — when pitch approaches ±90°, a_z → 0 and roll becomes geometrically undefined (gimbal lock).

Orientation	Expected	Relevant Axis	Measured	Error
Flat on table	pitch=0°, roll=0°	Both	pitch=0.17°, roll=−1.18°	<1.2°
Front edge down	pitch=+90°	Pitch	+88.10°	−1.90°
Back edge down	pitch=−90°	Pitch	−89.88°	+0.12°
Left edge down	roll=+90°	Roll	+86.87°	−3.13°
Right edge down	roll=−90°	Roll	−88.86°	+1.14°

Accuracy: All readings within ~3° of expected. Error sources: (1) table surface not perfectly level, (2) slight misalignment holding board against table edge. No two-point calibration was needed.

Gimbal Lock: When pitch approaches ±90°, a_z → 0, making atan2(ay, az) numerically unstable — roll becomes meaningless. This is a fundamental Euler angle limitation, not a sensor defect.

Noise & Frequency Analysis

Two datasets collected: board stationary (baseline) and table struck gently (induced vibration). FFT computed at ~61 Hz sampling rate:

def plot_fft(timestamps, signal, label="Pitch"):
    ts  = np.array(timestamps)
    sig = np.array(signal)
    dt  = np.mean(np.diff(ts)) / 1000.0   # ms → s
    fs  = 1.0 / dt                          # sampling freq Hz

    fft_vals = np.fft.rfft(sig - np.mean(sig))  # remove DC offset
    fft_mag  = np.abs(fft_vals) / len(sig)
    freqs    = np.fft.rfftfreq(len(sig), d=dt)
    # plot time domain and frequency domain...

Baseline noise (stationary board):

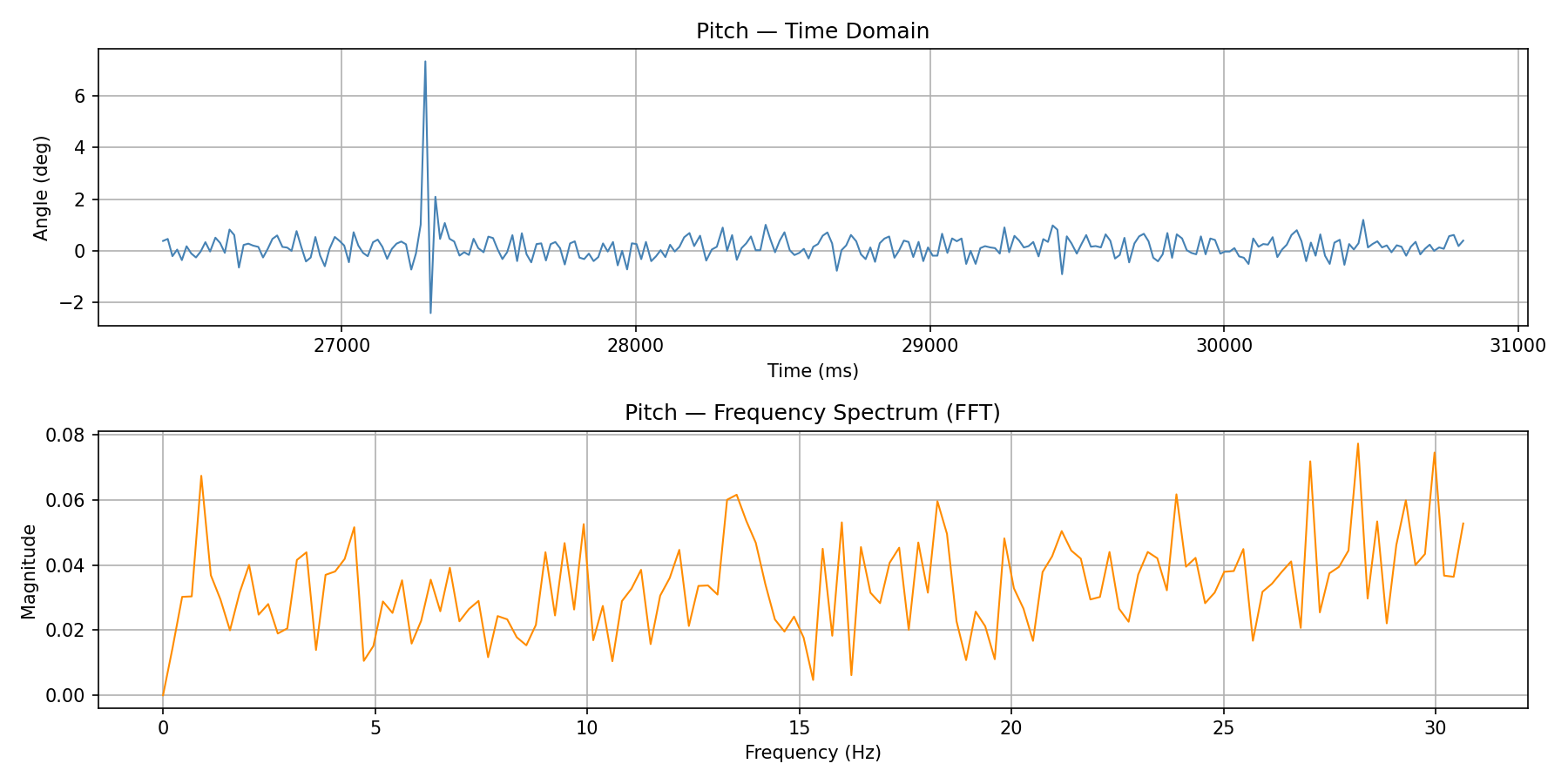

Pitch FFT stationary — Pitch FFT — stationary

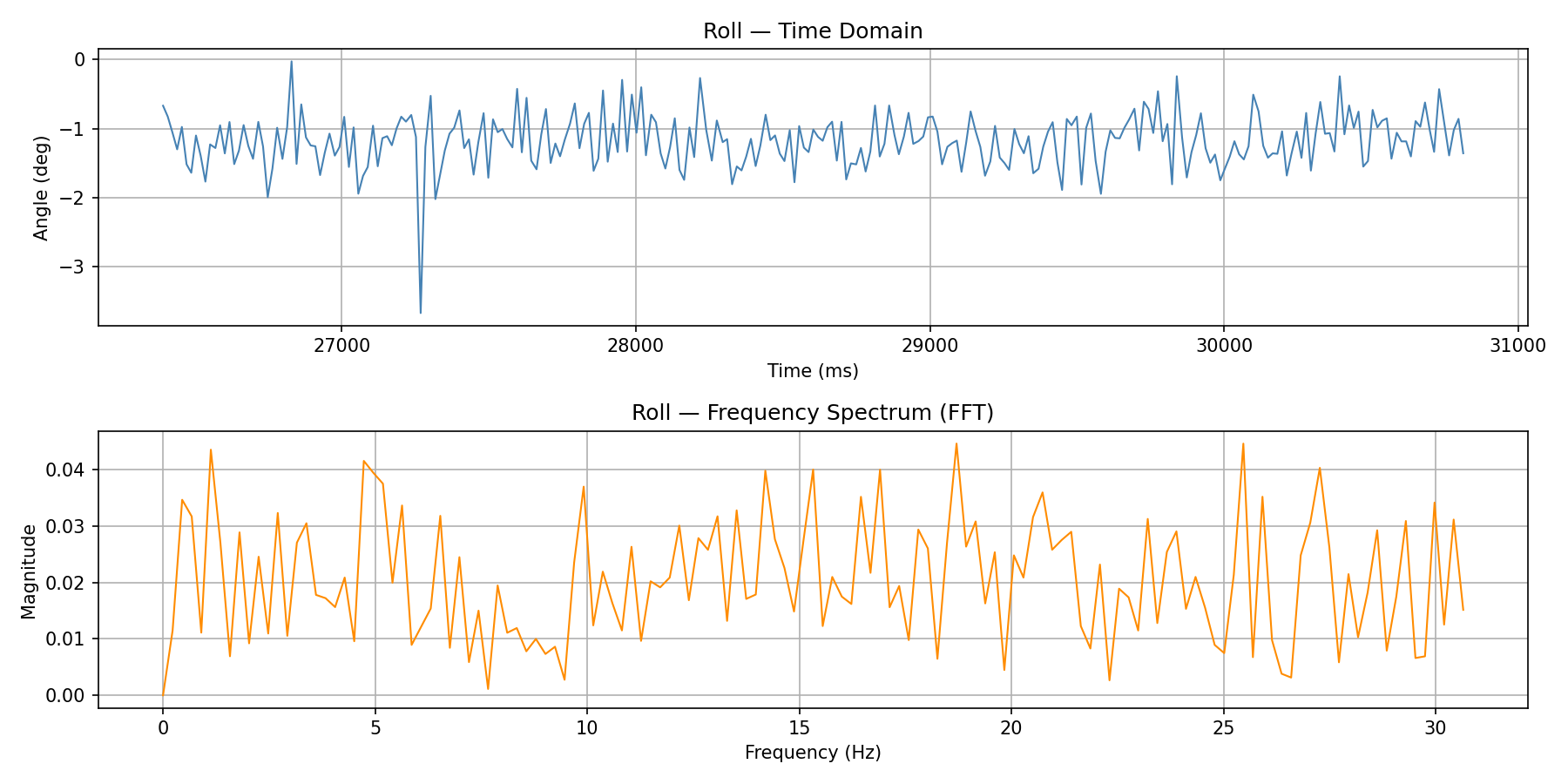

Roll FFT stationary — Roll FFT — stationary

Vibration data (table strikes):

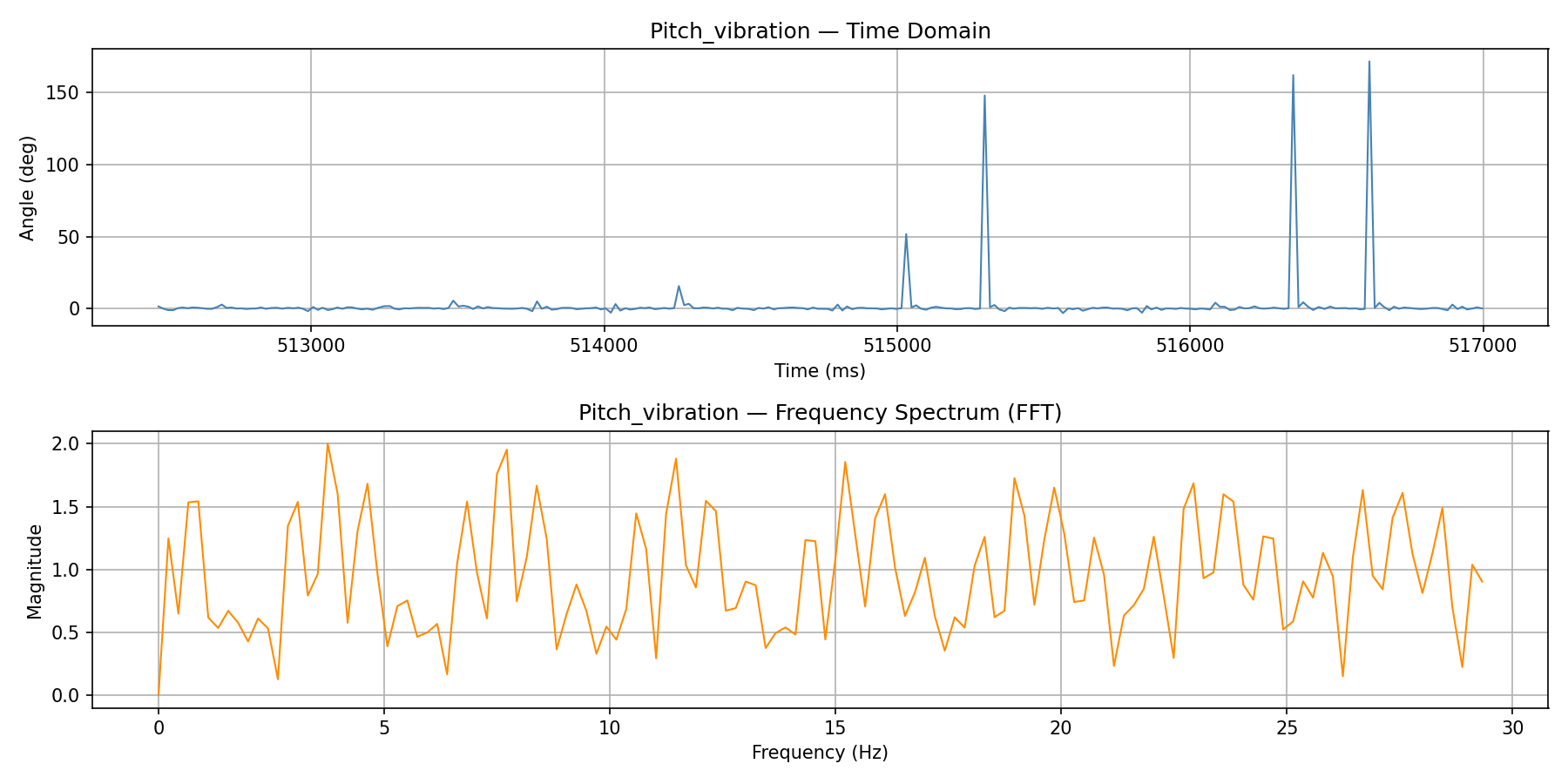

Pitch FFT vibration — Pitch FFT — table strikes

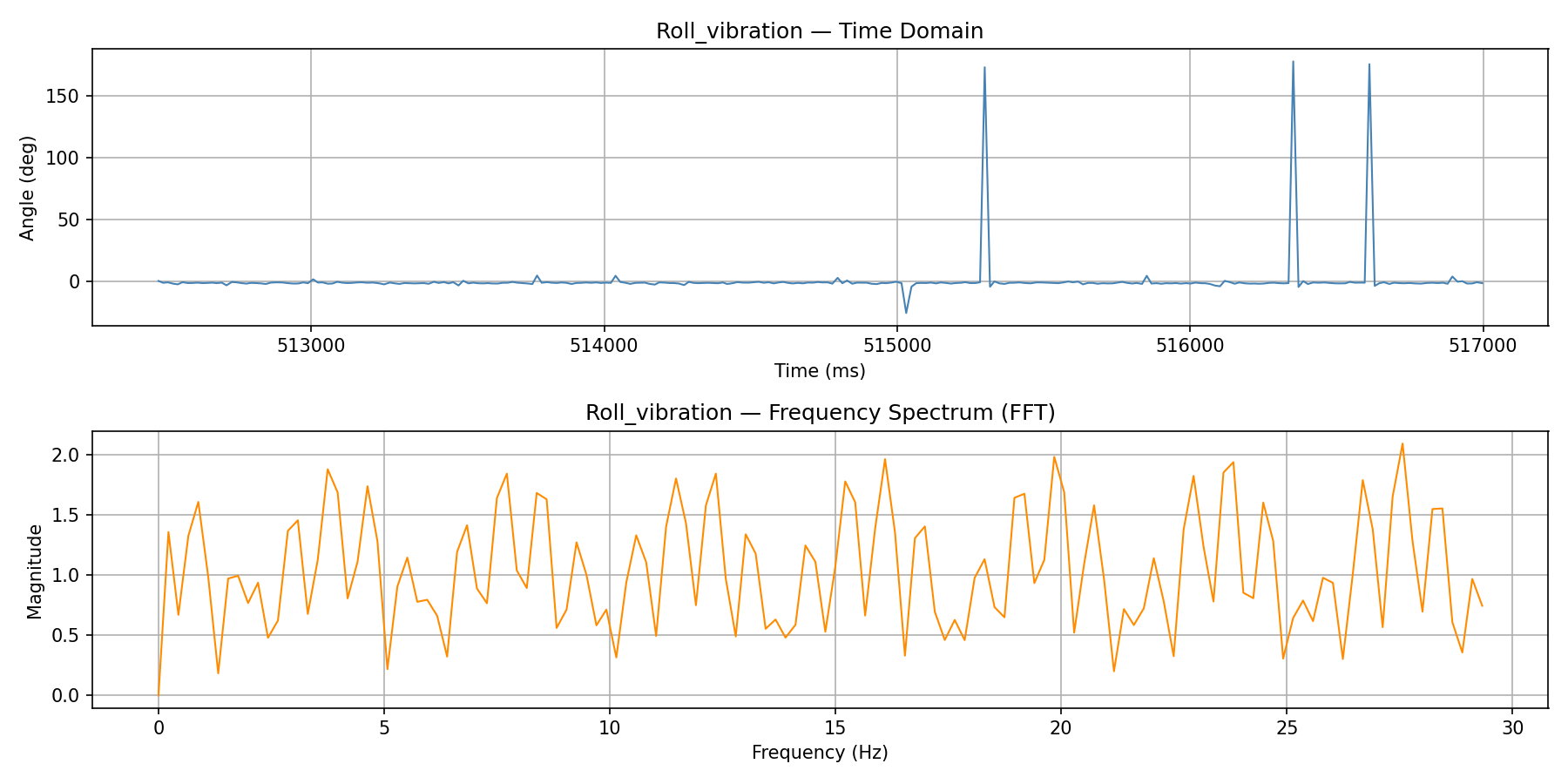

Roll FFT vibration — Roll FFT — table strikes

Observations: Baseline noise is ~0.02–0.08 magnitude, flat/broadband across 0–30 Hz — characteristic white noise from the MEMS sensor. Table strikes (impulse inputs) raise magnitude to ~1.5–2.0 but remain broadband, since an ideal impulse has a flat frequency spectrum. No dominant noise frequency peak exists in either case.

Cutoff Frequency — 5 Hz: Intentional tilt changes occur below ~1–2 Hz. Noise is broadband above that. 5 Hz preserves real motion while attenuating sensor noise. Going lower (1 Hz) makes the filter too sluggish; going higher (20 Hz) passes most noise through.

Low Pass Filter

A first-order IIR low pass filter was implemented on the Artemis:

x_f[n] = α · x[n] + (1 − α) · x_f[n−1]

// α derived from cutoff frequency and sampling rate:
α = T / (T + RC)

T = 1 / rate // sampling period (s)
RC = 1 / (2π · f_c) // time constant from cutoff frequency

// At f_s = 61.3 Hz, f_c = 5 Hz:
T = 1/61.3 ≈ 0.0163 s
RC = 1/(2π×5) ≈ 0.0318 s
α = 0.0163 / (0.0163 + 0.0318) ≈ 0.34

// α = 0.2 used — slightly more aggressive smoothing than theoretical

const float alpha = 0.2;

// Inside getAngles():
pitch_lpf = alpha * pitch + (1 - alpha) * pitch_lpf;
roll_lpf  = alpha * roll  + (1 - alpha) * roll_lpf;

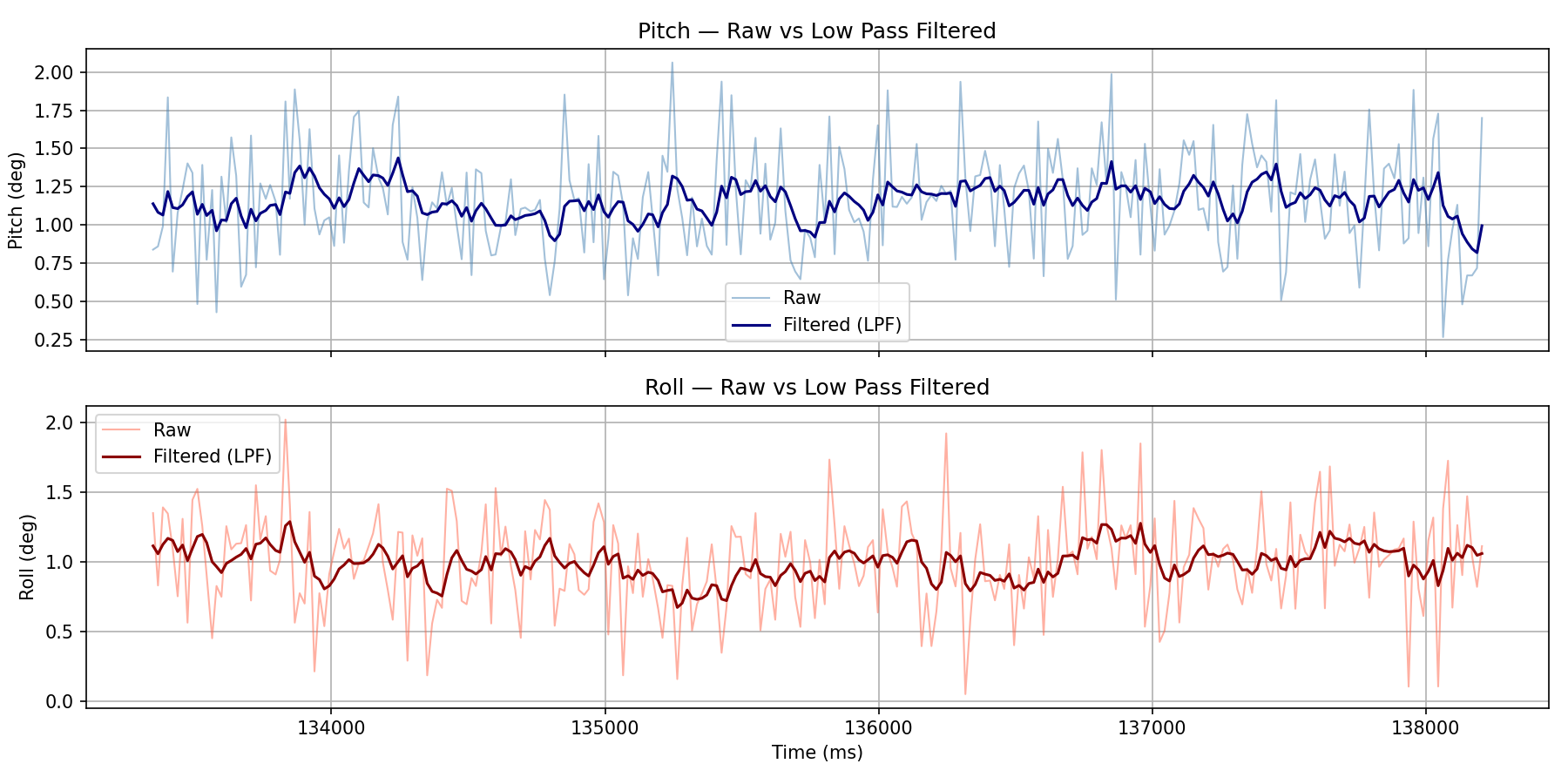

Result: The filtered signal cleanly tracks mean orientation while suppressing ±0.5° high-frequency noise. The filter introduces a small lag proportional to 1/α — acceptable for slow tilt estimation. Higher α = less lag but more noise; lower α = smoother but slower response.

Gyroscope

Pitch, Roll & Yaw

The gyroscope measures angular velocity (deg/s). Angles are obtained by integrating over time:

pitch_g += ω_x · dt
roll_g += ω_y · dt
yaw_g += ω_z · dt

// dt from micros() delta between samples

float pitch_g = 0.0, roll_g = 0.0, yaw_g = 0.0;
unsigned long last_time_g = 0;

void updateGyro() {
    unsigned long now = micros();
    float dt = (now - last_time_g) / 1000000.0;
    last_time_g = now;

    if (myICM.dataReady()) {
        myICM.getAGMT();
        pitch_g += myICM.gyrX() * dt;
        roll_g  += myICM.gyrY() * dt;
        yaw_g   += myICM.gyrZ() * dt;
    }
}

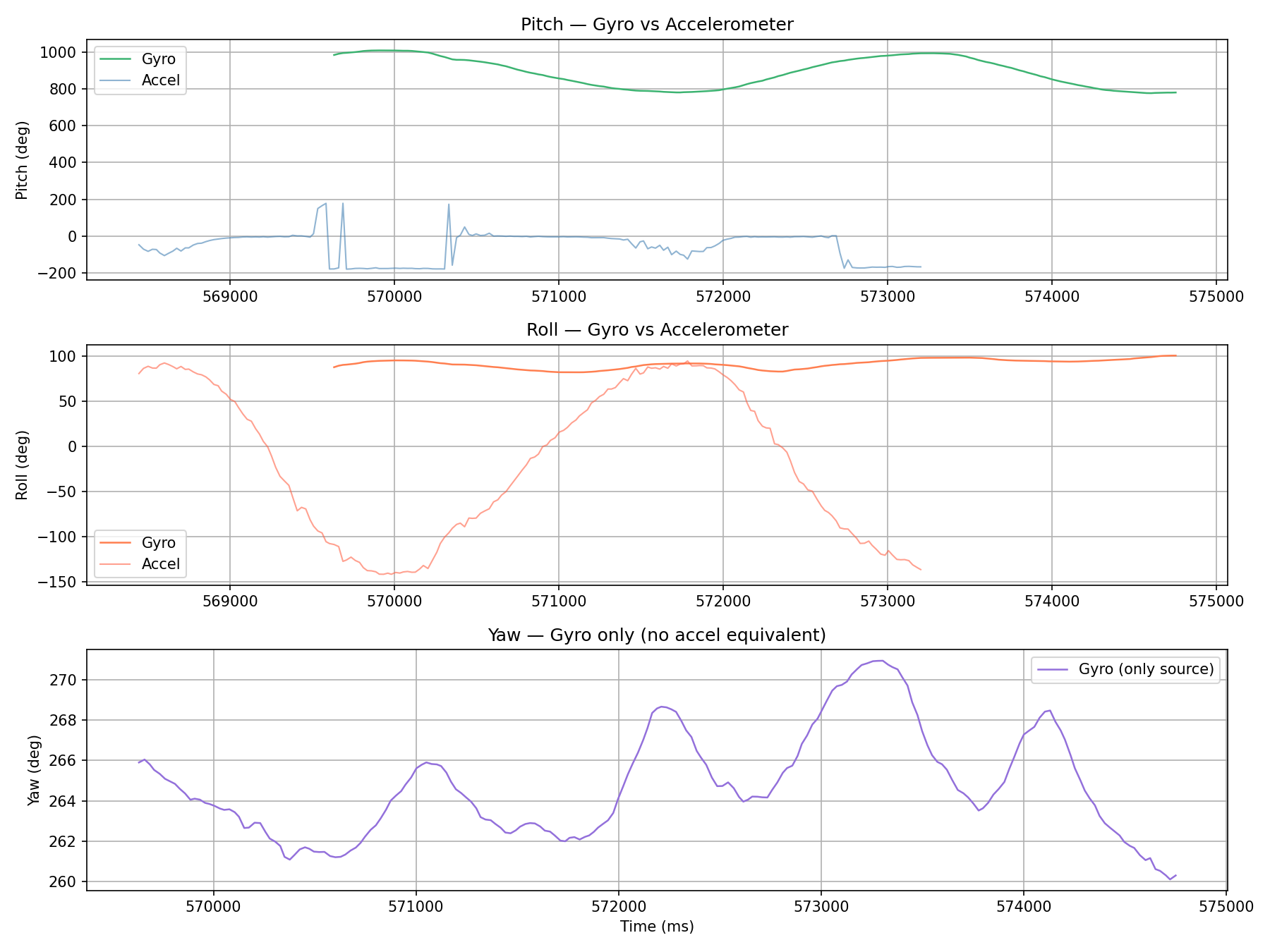

Gyro vs Accelerometer: The gyroscope integrates continuously with no angular bounds, while atan2 constrains the accelerometer to ±180°. The gyro is smooth but accumulates drift — visible in the yaw plot creeping even when stationary. The accelerometer is bounded and drift-free but noisy, and cannot measure yaw at all (gravity has no yaw component).

Drift: With the board stationary, gyro yaw drifted ~1.5° over 7 seconds (~0.21°/s). This accumulates unboundedly — after 60s the error exceeds 12°, making the gyro alone unsuitable for long-term orientation estimation.

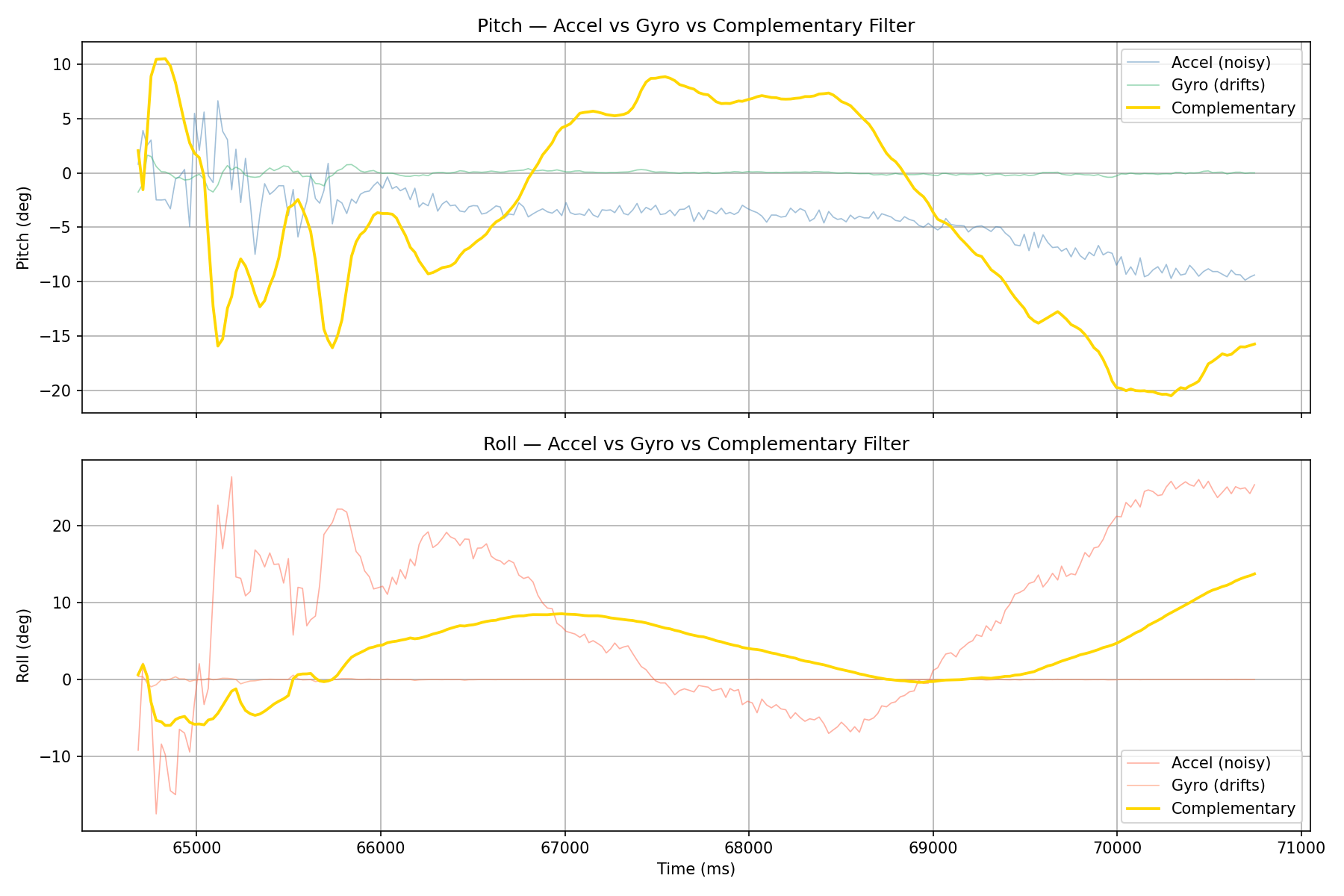

Complementary Filter

Fuses both sensors — gyroscope for short-term smoothness, accelerometer for long-term drift correction:

θ[n] = α · (θ[n−1] + ω · dt) + (1 − α) · θ_accel

// α → 1: trust gyro (smooth, slight drift)
// α → 0: trust accel (noisy, no drift)
// α = 0.98: standard starting point

float pitch_c = 0.0, roll_c = 0.0;
unsigned long last_time_c = 0;

void updateComplementary(float pitch_a, float roll_a) {
    unsigned long now = micros();
    float dt = (now - last_time_c) / 1000000.0;
    last_time_c = now;

    pitch_c = 0.98 * (pitch_c + myICM.gyrX() * dt) + 0.02 * pitch_a;
    roll_c  = 0.98 * (roll_c  + myICM.gyrY() * dt) + 0.02 * roll_a;
}

// Reset on every new BLE connection to prevent drift accumulation:
pitch_g = 0.0; roll_g = 0.0; yaw_g = 0.0;
pitch_c = 0.0; roll_c = 0.0;
last_time_g = micros(); last_time_c = micros();

Result: The complementary filter tracks the accelerometer's mean angle while rejecting high-frequency noise. At α = 0.98, the gyroscope handles short-term dynamics while the 2% accelerometer contribution prevents long-term drift. The filter is resistant to quick vibrations and does not drift over time.

Sample Data

Speed of Sampling

To measure loop speed, all Serial.print statements were commented out and all delay() calls removed. A loop counter and timestamp were used to compute the effective sampling rate:

// Measure loop rate: count iterations over 1 second
unsigned long start = millis();
int loop_count = 0;

while (millis() - start < 1000) {
    float p, r, pf, rf;
    if (getAngles(p, r, pf, rf)) {
        loop_count++;
    }
}
Serial.print("IMU samples per second: ");
Serial.println(loop_count);

Result: The Artemis main loop runs significantly faster than the IMU produces new data. The ICM-20948 outputs new samples at approximately 61 Hz by default. The dataReady() check ensures we only store a sample when the IMU has fresh data, so the effective storage rate matches the IMU output rate rather than the loop rate. No samples are missed and no duplicates are stored.

Data type justification: Floats are used for pitch, roll, and yaw since angular values require decimal precision. Integers are used for timestamps since millis() returns whole milliseconds and use half the memory of floats. At 300 samples with 9 floats and 1 integer per sample, total memory usage is approximately 300 x (9 x 4 + 4) = 12 KB, well within the Artemis 384 KB RAM.

Timestamped IMU Data in Arrays

Separate arrays are used for accelerometer, gyroscope, and complementary filter data. This avoids packing everything into one large struct and makes it easy to send only the data needed per command. All arrays share the same timestamp array since they are collected in lockstep.

#define IMU_ARRAY_SIZE 300

int   imu_time[IMU_ARRAY_SIZE];
float imu_pitch[IMU_ARRAY_SIZE],   imu_roll[IMU_ARRAY_SIZE];
float imu_pitch_f[IMU_ARRAY_SIZE], imu_roll_f[IMU_ARRAY_SIZE];
float imu_pitch_g[IMU_ARRAY_SIZE], imu_roll_g[IMU_ARRAY_SIZE], imu_yaw_g[IMU_ARRAY_SIZE];
float imu_pitch_c[IMU_ARRAY_SIZE], imu_roll_c[IMU_ARRAY_SIZE];
int   imu_index = 0;

// Non-blocking collection in loop():
float p, r, pf, rf;
if (getAngles(p, r, pf, rf)) {
    updateGyro();
    updateComplementary(p, r);
    int idx = imu_index % IMU_ARRAY_SIZE;
    imu_time[idx]    = (int)millis();
    imu_pitch[idx]   = p;       imu_roll[idx]    = r;
    imu_pitch_f[idx] = pf;      imu_roll_f[idx]  = rf;
    imu_pitch_g[idx] = pitch_g; imu_roll_g[idx]  = roll_g; imu_yaw_g[idx] = yaw_g;
    imu_pitch_c[idx] = pitch_c; imu_roll_c[idx]  = roll_c;
    imu_index++;
}

5s of IMU Data over Bluetooth

At 61 Hz, 300 samples covers approximately 5 seconds of data. The circular buffer always holds the most recent 300 samples. On command, the Artemis streams all 300 entries in chronological order over BLE:

// GET_IMU_DATA sends all fields per sample in one string:
// Format: T:xxx|P:x.xx|R:x.xx|PG:x.xx|RG:x.xx|YG:x.xx|PC:x.xx|RC:x.xx
case GET_IMU_DATA:
{
    int current_pos = imu_index % IMU_ARRAY_SIZE;
    for (int i = current_pos; i < IMU_ARRAY_SIZE; i++) { /* send old half */ }
    for (int i = 0; i < current_pos; i++)               { /* send new half */ }
    break;
}

def handler_imu(uuid, bytearray):
    s = bytearray.decode('utf-8')
    t  = int(float(s[s.find("T:")+2   : s.find("|P:")]))
    p  = float(s[s.find("|P:")+3      : s.find("|R:")])
    r  = float(s[s.find("|R:")+3      : s.find("|PG:")])
    pg = float(s[s.find("|PG:")+4     : s.find("|RG:")])
    rg = float(s[s.find("|RG:")+4     : s.find("|YG:")])
    yg = float(s[s.find("|YG:")+4     : s.find("|PC:")])
    pc = float(s[s.find("|PC:")+4     : s.find("|RC:")])
    rc = float(s[s.find("|RC:")+4     :])
    imu_timestamps.append(t)
    imu_pitch.append(p);    imu_roll.append(r)
    imu_pitch_g.append(pg); imu_roll_g.append(rg); imu_yaw_g.append(yg)
    imu_pitch_c.append(pc); imu_roll_c.append(rc)

ble.connect()
ble.start_notify(ble.uuid['RX_STRING'], handler_imu)
time.sleep(3)
ble.send_command(CMD.GET_IMU_DATA, "")
time.sleep(8)
ble.stop_notify(ble.uuid['RX_STRING'])
print(f"Received {len(imu_timestamps)} samples spanning "
      f"{(imu_timestamps[-1] - imu_timestamps[0]) / 1000:.1f}s")

Result: 300 samples received, spanning approximately 5 seconds of timestamped IMU data transferred over BLE. All accelerometer, gyroscope, and complementary filter fields received correctly.

Record a Stunt

The RC car was driven to observe its handling and dynamics before attaching the IMU for future labs. The car is fast, lightweight, and tends to flip on sharp turns at high speed. Turning radius is tight and it responds quickly to input.
